600 Watt 220V 110V Solar Panel Complete Kit System & Off-grid solar panel system 600W and 12V 1000W Pure Positive Wave Inverter
600 Watt 220V 110V Solar Panel Complete Kit System & Off-grid solar panel system 600W and 12V 1000W Pure Positive Wave Inverter
SPECIFICATIONS
Application: Home
Brand Name: xinpuguang
Certification: CE,RoHS,weee
High-concerned chemical: None
Load Power (W): 1000W
Model Number: Off-grid solar panel system
Origin: Mainland China
Output Voltage (V): 110v / 220v & 230v
Solar Power (W): 600W
Specification: Normal
Type: Solar Energy Systems (excluding batteries)
is_customized: Yes
600 Watt 220V 110V Solar Panel Complete Kit System & Off-grid solar panel system 600W and 12V 1000W Pure Positive Wave Inverter
High efficiency: the XINPUGUANG 600W solar panel kit consists of highly efficient monocrystalline solar cells with a conversion rate of up to 22% and offers a long service life.
Durable: Anodized aluminum frame, tempered glass and sealed junction box make the solar panel corrosion resistant and weatherproof for excellent outdoor performance.
Functional: the solar panel produces about 2.4-3 kWh per day, ideal for homes, caravans, sheds, remote locations and other small power generation.

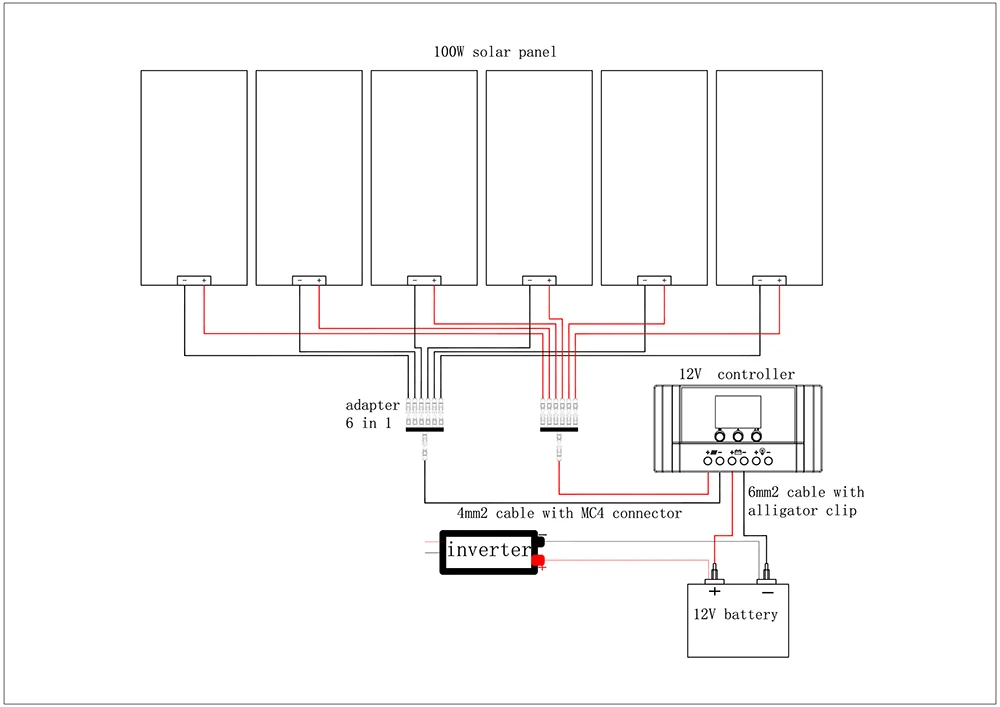

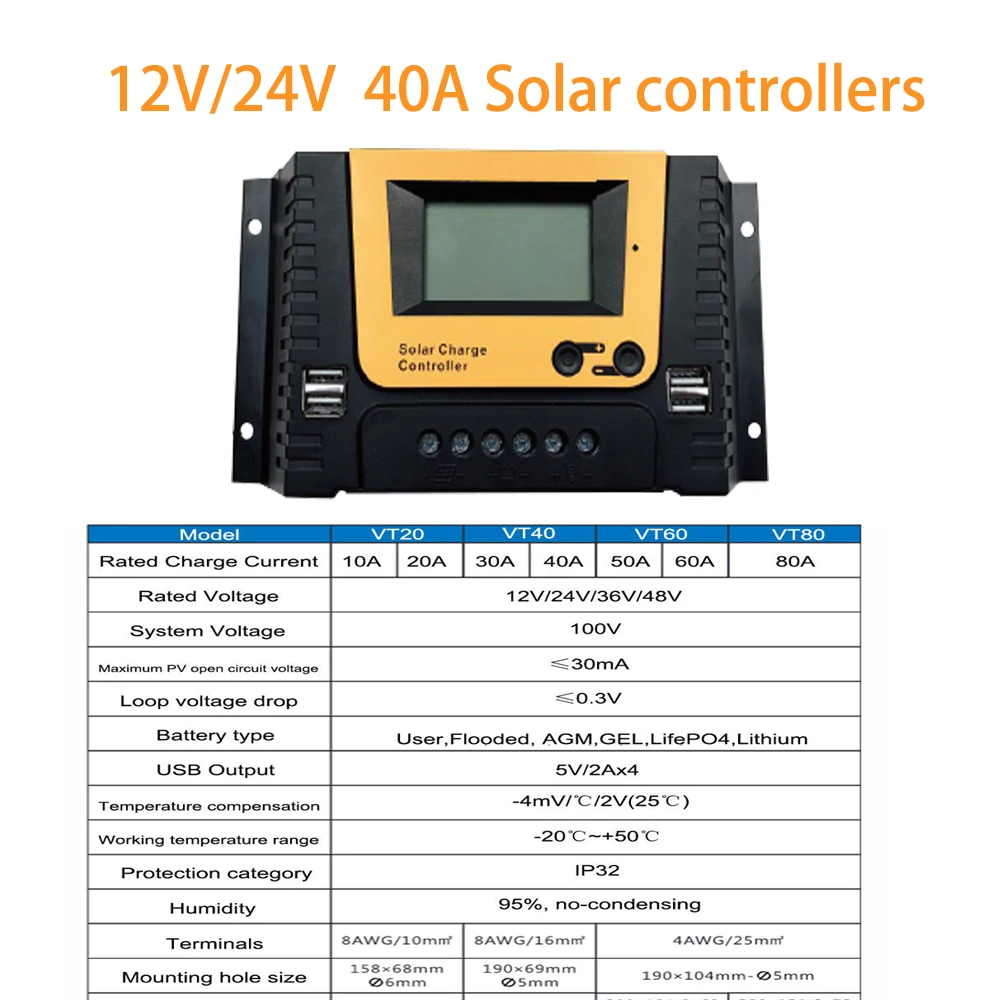

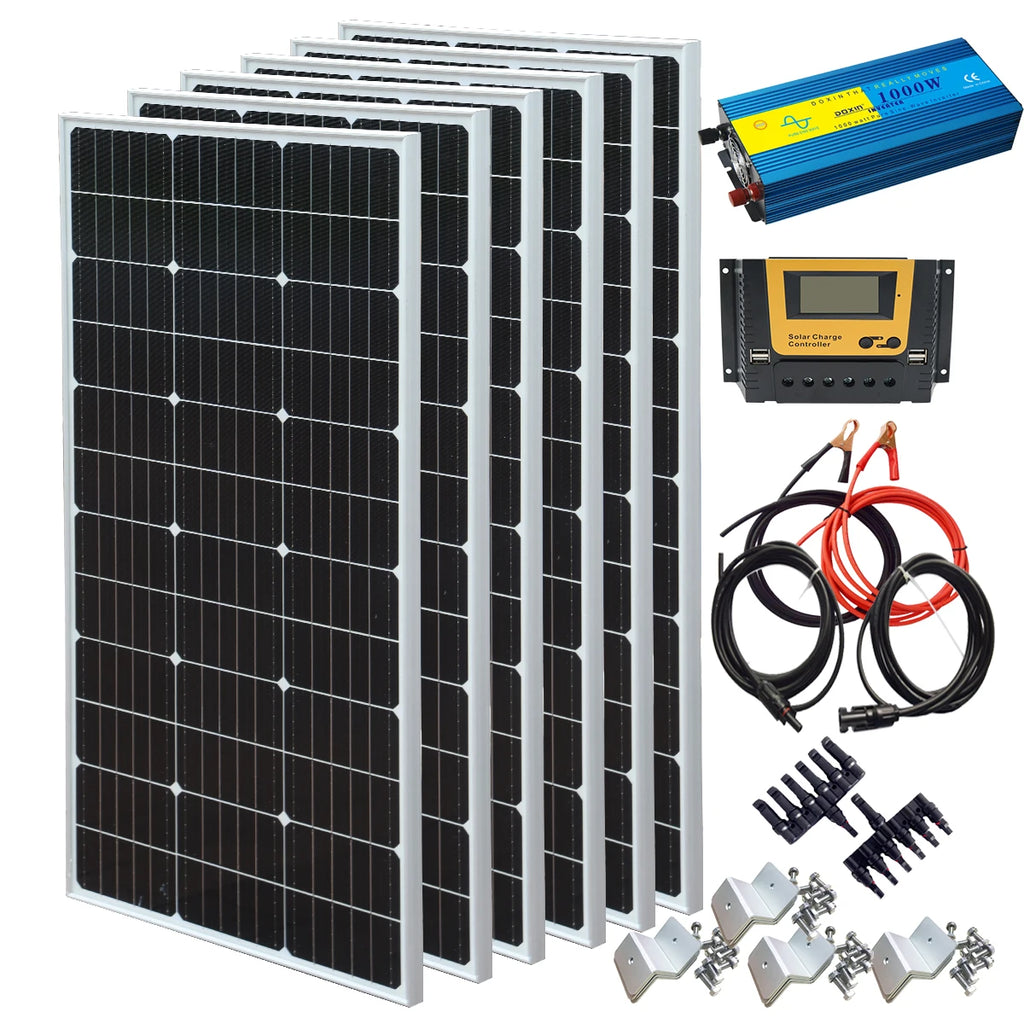

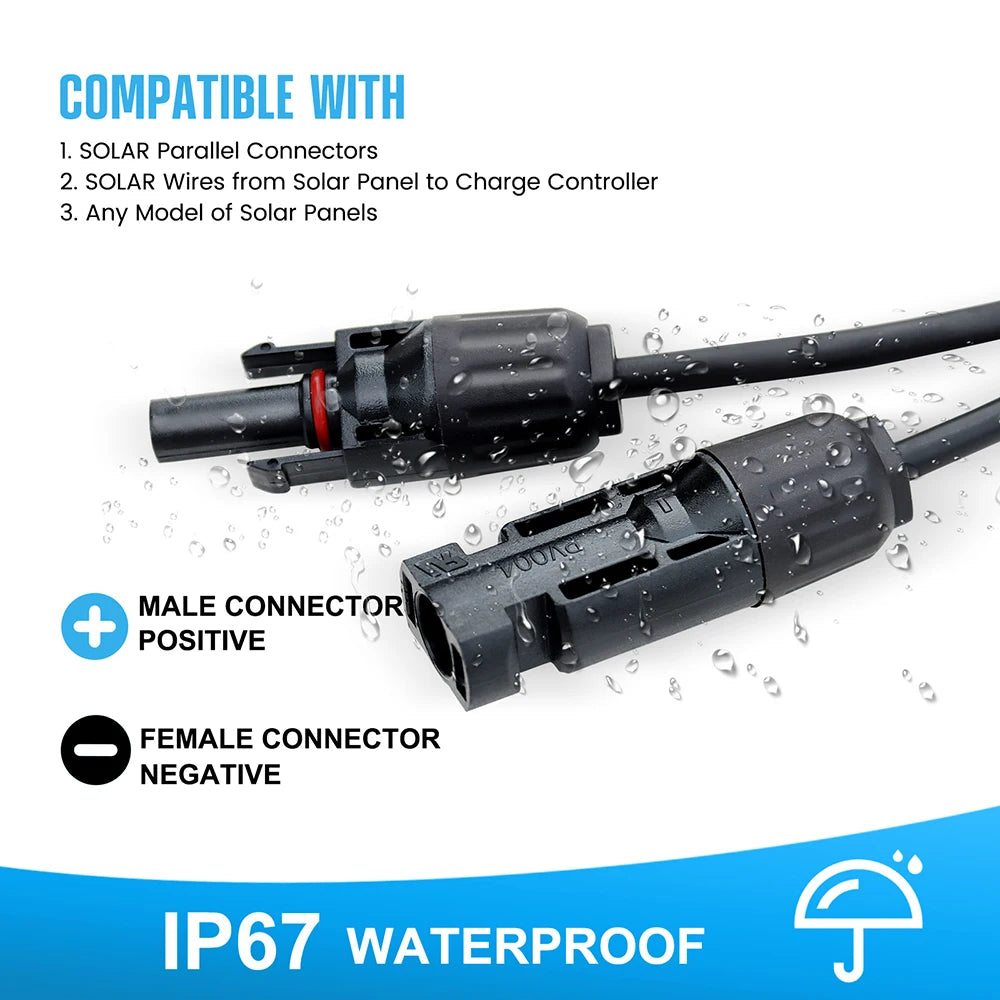

Easy installation: Solar Panel System Equipped with 1 * 50A charge controller which consists of rechargeable lead acid and lithium batteries, 1 * 1000W pure sine wave inverter, 1 pair of 3m extension cable, 1 pair of 3m battery crocodile clip cable, 1 set of brackets and screws. These accessories and pre-drilled mounting holes of the solar panel make the installation of the system easy. OR Equipped 6 x 100W solar panel
Professional Service: This 600W system has been subjected to strict quality testing, and we have professional R&D engineers, quality engineers, and excellent customer service teams. You can contact us at any time if you have any questions, we will serve you with full heart.
☛ ABOUT SOLAR PANEL：
MAXIMUM POWER(PMAX): 100W
TYPE OF CELL : MONOCRYSTALLINE SILICON (PERC)
CELL EFFICIENCY : 22%
MAXIMUM SYSTEM VOLTAGE: 700V DC
OPEN CIRCUIT VOLTAGE(VOC): 23.76V
SHORT CIRCUIT CURRENT(ISC) : 5.5A
MAXIMUM POWER VOLTAGE(VMP) : 19.8V
MAXIMUM POWER CURRENT(IMP) : 5.05A
LENGTH OF CONNECTING CABLE: 90 CM
NUMBER OF CELLS: 36PCS

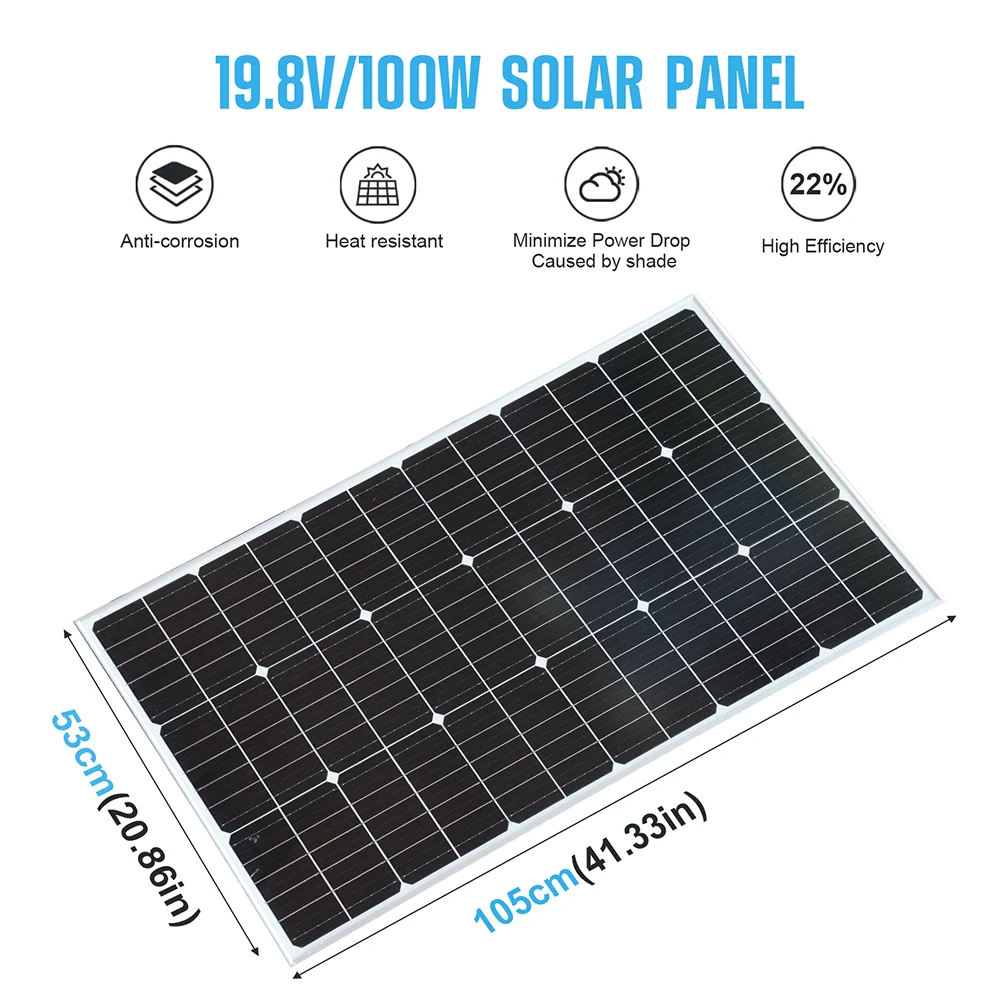

SIZE: 1050×530×25 MM (41.33×20.86×0.98 INCH)
OPERATING TEMPERATURE（NOCT）: 45±2℃
TEMPERATURE RANGE: -40℃～+80℃
STANDARD TEST CONDITIONS (STC)： IRRADIANCE 1000W/M², TEMPERATURE 25℃, AM=1.5

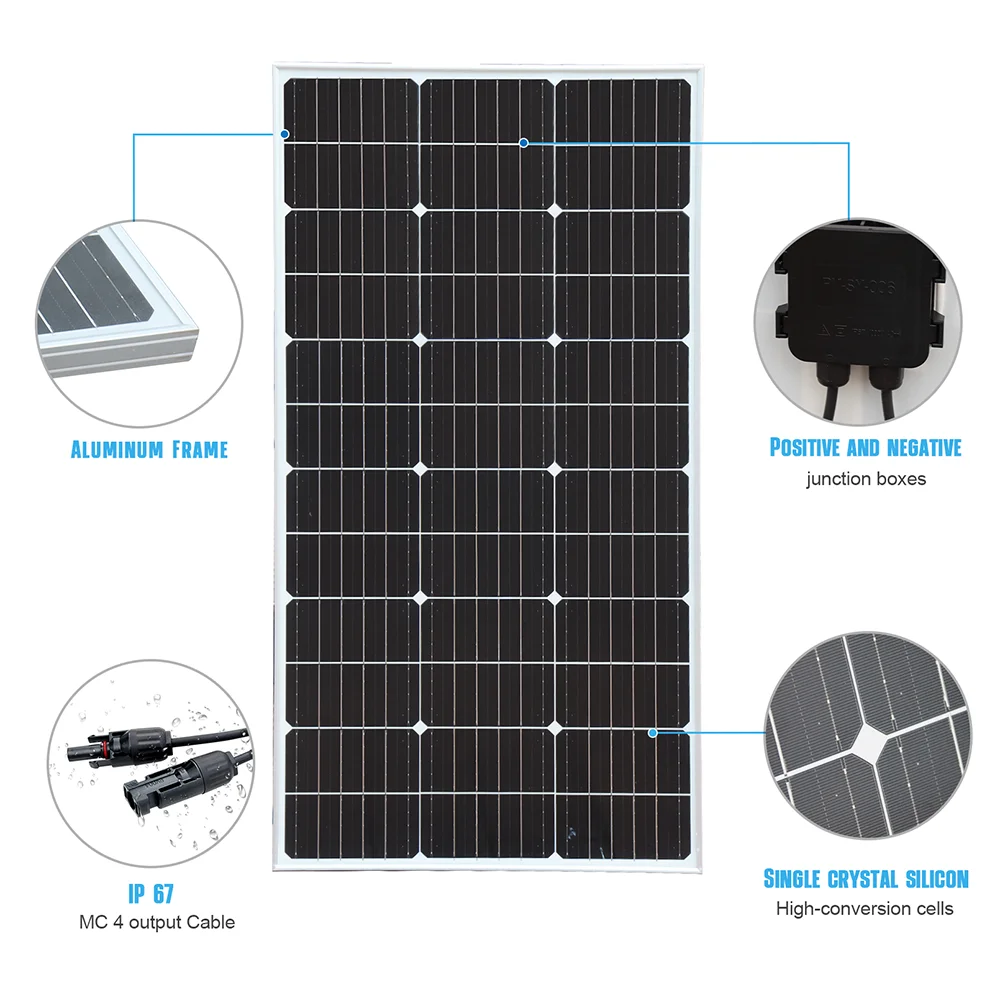

☛ PRODUCT FEATURES:
(A) HIGH EFFICIENCY: USING 166*166 MM MONOCRYSTALLINE SOLAR CELL, CONVERSION EFFICIENCY IS UP TO 22%, MORE EFFECTIVE THAN MANY KINDS OF SOLAR CELLS IN THE PHOTOVOLTAIC MARKET.
(B) SAFETY: THE SOLAR PANEL IS EMBEDDED WITH BYPASS DIODES, WHICH CAN EFFECTIVELY PROTECT THE SOLAR PANEL. THE ALUMINUM FRAME WITH HOLES FIXED WITH SCREWS MAKES INSTALLATION EASY.
(C) DURABILITY: THE SURFACE OF THE SOLAR PANEL IS MADE OF TEMPERED GLASS, AND THE SURROUNDING ALUMINUM FRAME IS USED. IT HAS A SIGNIFICANT EFFECT ON WATERPROOF AND CORROSION RESISTANCE. AT THE SAME TIME, IT CAN ALSO PLAY A HUGE ROLE IN RESISTING STRONG WIND (2400PA) AND WITHSTANDING HEAVY SNOW (5400PA).
(D) WIDE APPLICATION RANGE: THROUGH THE CONVERSION OF LIGHT ENERGY INTO ELECTRIC ENERGY, THIS SET OF PRODUCTS CAN BE USED IN PLACES WHERE ELECTRIC ENERGY CANNOT BE REACHED, SUCH AS SEA, ISLANDS, DESERTS, AND MOUNTAINS. IN ADDITION, SOLAR PANELS CAN ALSO BE USED AS EMERGENCY POWER SOURCES OUTDOORS. WHEN THE SOLAR PANEL IS USED WITH THE BATTERY KIT, IT CAN ALSO BE USED INDEPENDENTLY AS AN OFF-GRID SYSTEM.

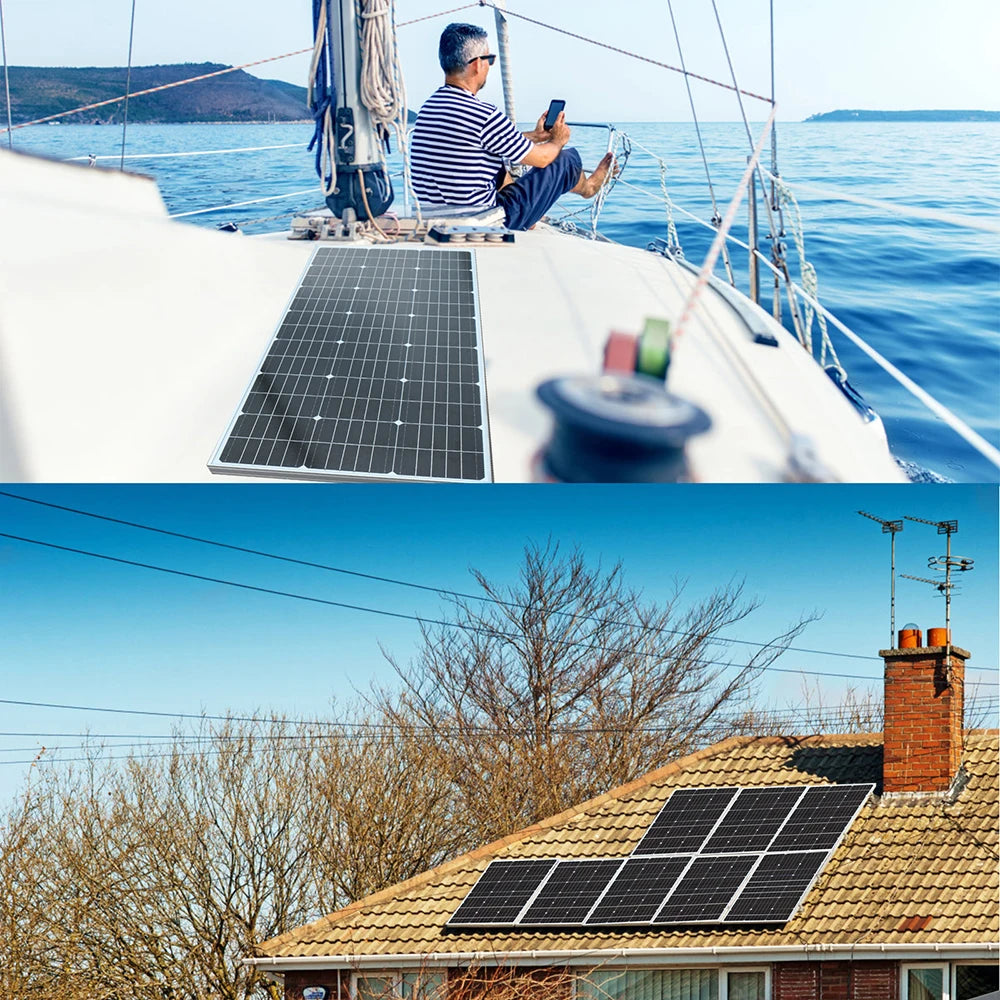

(E) PRACTICABILITY: THE SOLAR PANEL ADOPTS IP67 WATERPROOF GRADE MATERIALS, WHICH ARE VERY SUITABLE FOR OUTDOOR EQUIPMENT AND PLACES IN DESIGN AND USE. THEY CAN BE USED ON ROOFS, GARDENS, COURTYARDS, RVS, CAMPERS, TRAILER, CAMPING TENTS, YACHTS, CHARGING BOATS, STREET LIGHTS, CAR BATTERIES , BALKONKRAFTWERK AND OTHER SCENARIOS.

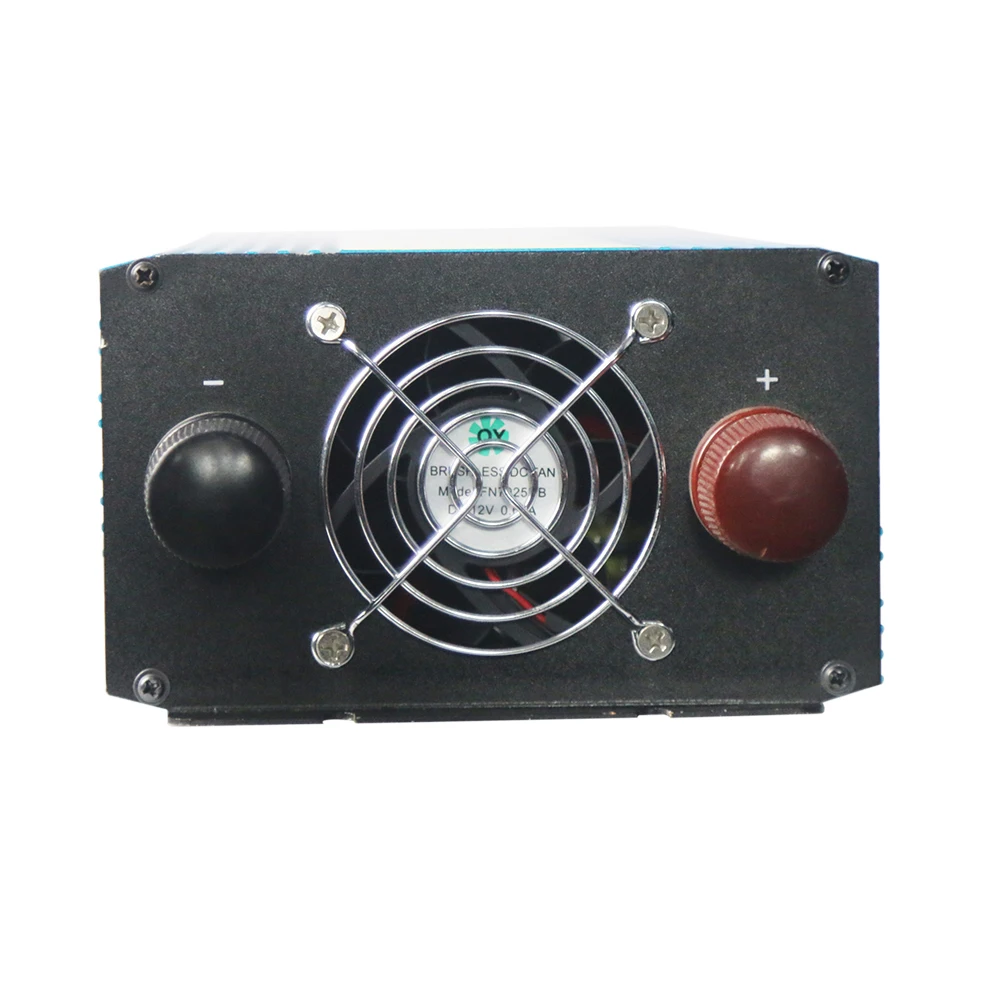

inverter Details
Place of Origin: Guangdong, China
Output Waveform: pure sine wave
Continuous Power: 1000w
Surge Power: 2000w
Input volt:12v DC
Output Volt:110v/220V AC
Efficiency:>90%
Frequency:50/60±3Hz
Notes for use:
a. This product must not come into contact with highly corrosive substances.
b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.
c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.
d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.
e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.
f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.
g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.
h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.

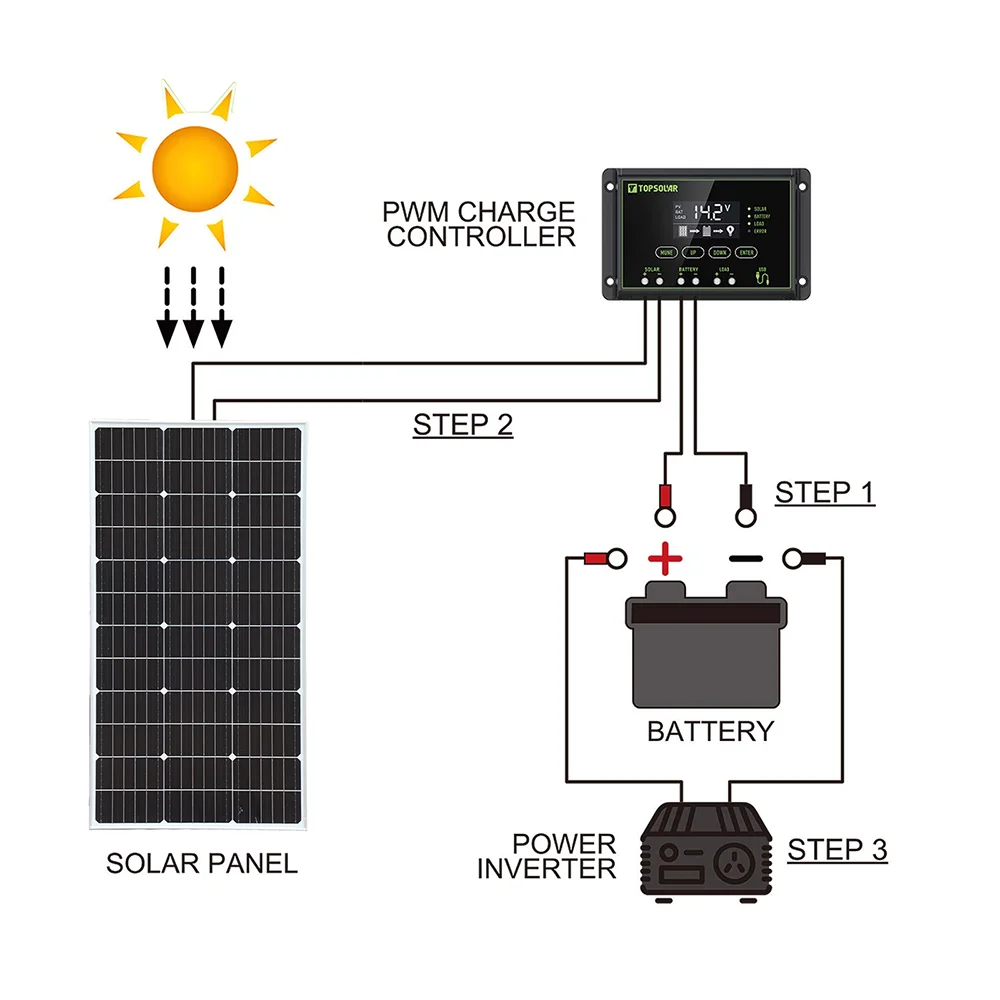

i. The inverter can only be connected to the battery, not directly to the controller.
